LiqCN-8A Series Piston Bottle Filling Machine

Heavy duty piston filling up to 80cpm.

LiqCN-8A Series Piston Bottle Filling Machine

LiqCN-8 Series Piston Bottle Filling Machine is design to provide flexible filling capability for all your applications from light liquids to heavy creams and gels. Automatic models are available in three dispensing ranges: 30-100mL (up to 80 cpm), 100-500mL (up to 60 cpm) and 500-1,000mL (up to 50 cpm) with little additional change parts.

Each A-8 Series Piston Bottle Filling system is specifically constructed to the individual product specifications, space constraints, and production environment to maximize product output. It is an easy to use system with a simple and intuitive touch screen display.

  • 304 Sanitary Stainless Steel frame configured to project specifications
  • 316L Stainless Steel Head Filling with 8 nozzle ports

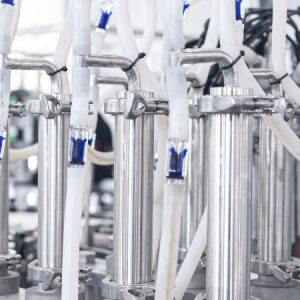

  • Servo Driven Piston Filler
  • PLC Touch screen with HMI interface for easy recipe setup and monitoring
  • Motorizing system for the movements of various groups
  • No bottle-no fill
  • Neck clamp; clamp on/off contact parts for fast changeover
  • All non-metal material will be designed for compatibility with customer’s disinfectants.
  • Capable of assigning user rights to a group; user access matrix available
  • HMI CFR 21, Part 11 compliant; Audit Trial is viewable/exportable
  • FAT service included
  • Optional pFMEA, SAT and IOQ available
Model: LiqCN-8A Series
Length: 120”
Width: 60”
Height: 80”
Weight: 2,000 lb.
Filling Nozzles: 8
Accuracy: ± 2%
Reject Rate: Less than 1%
Electrical Requirements: 380V/50Hz
Air Requirements: 110 psi.
Range: 0-100mL, 100-500mL, 500-1,000mL
Output: up to 80 CPM
Finish: Stainless steel
