Superfine Grinder
Superfine grinder WFJ series is equipment which achieve superfine grinding of dry materials through air separation, heavy pressure grinding and shearing.
![](https://www.huadapharma.com/wp-content/uploads/2022/05/DSC-1274-300x300.jpg)
![](https://www.huadapharma.com/wp-content/uploads/2022/05/DSC-1278-300x300.jpg)
![](https://www.huadapharma.com/wp-content/uploads/2022/05/DSC-1282-300x300.jpg)
![](https://www.huadapharma.com/wp-content/uploads/2022/05/DSC-1289-300x300.jpg)
![](https://www.huadapharma.com/wp-content/uploads/2022/05/DSC-1294-300x300.jpg)

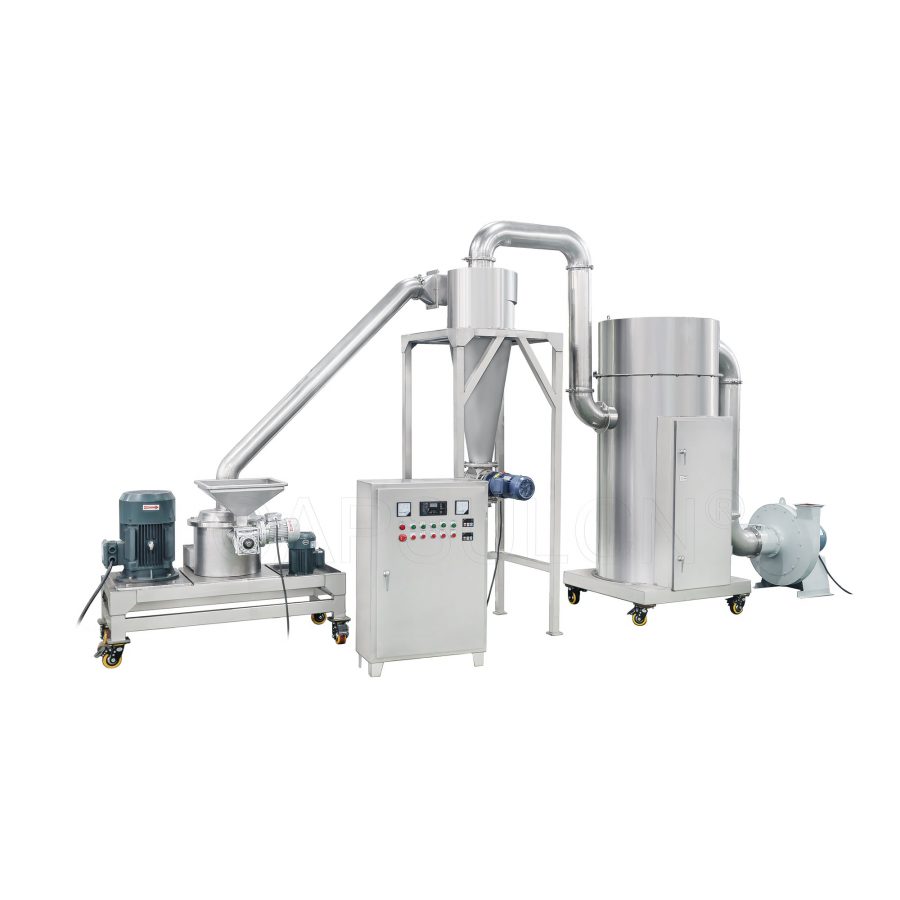

Superfine Grinder WFJ-15
Superfine grinder WFJ series is equipment which achieve superfine grinding of dry materials through air separation, heavy pressure grinding and shearing.

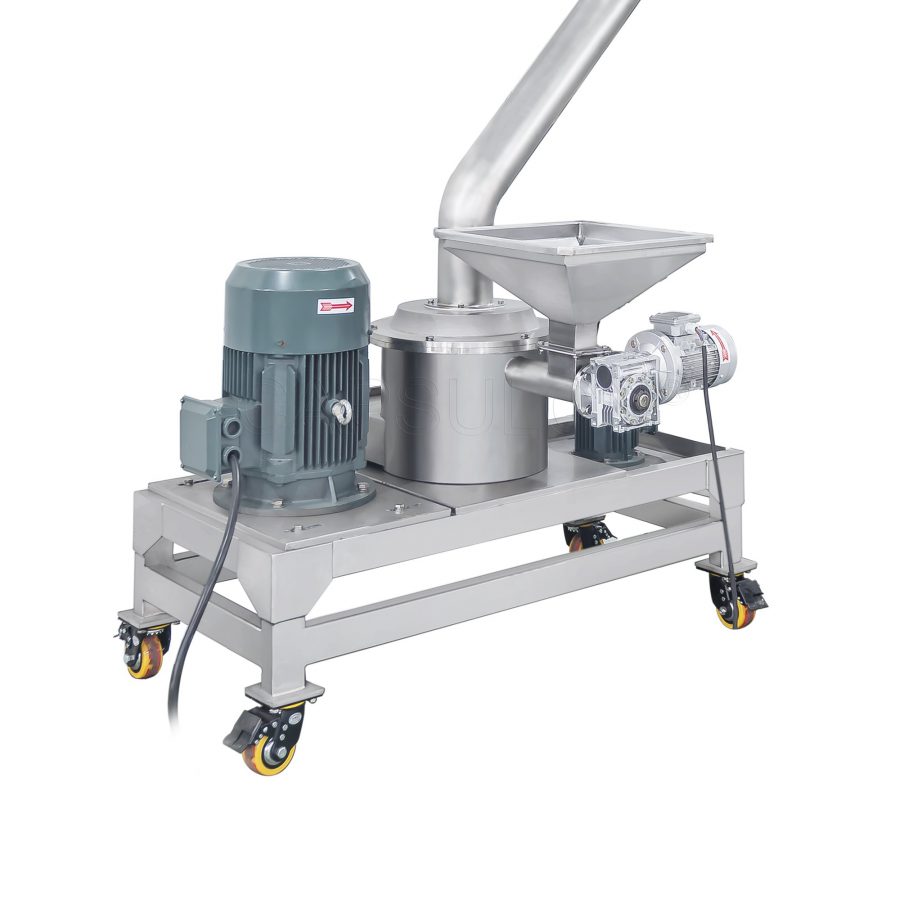

The material in the hopper passes through the auger conveyer and enters the grinding chamber. Then, As the blades rotate at high speed, the material is sheared and crushed. After that, the material is transported into the cyclone separator and bag-type dust collector by the wind force resulting from negative pressure.

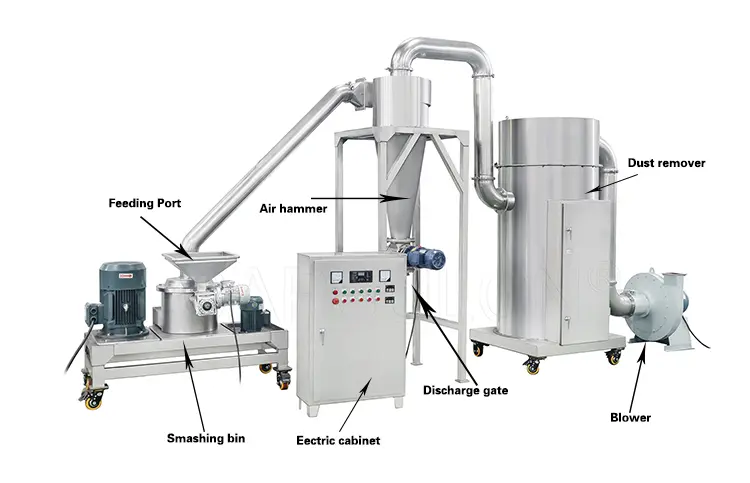

Structure

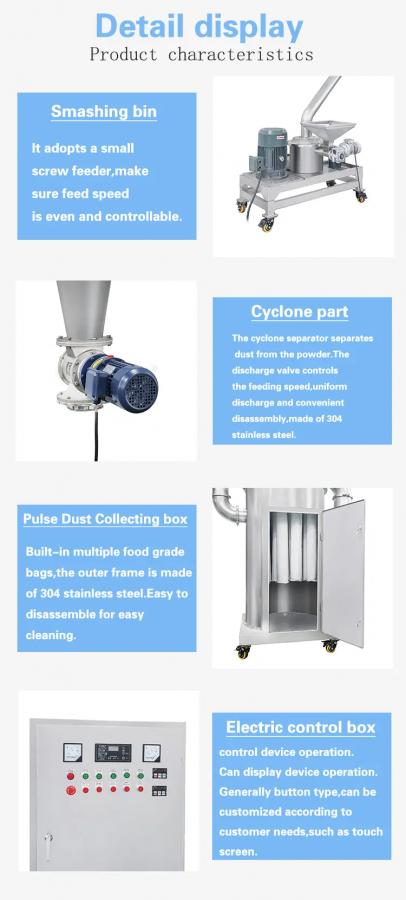

Detail Display
Remarks

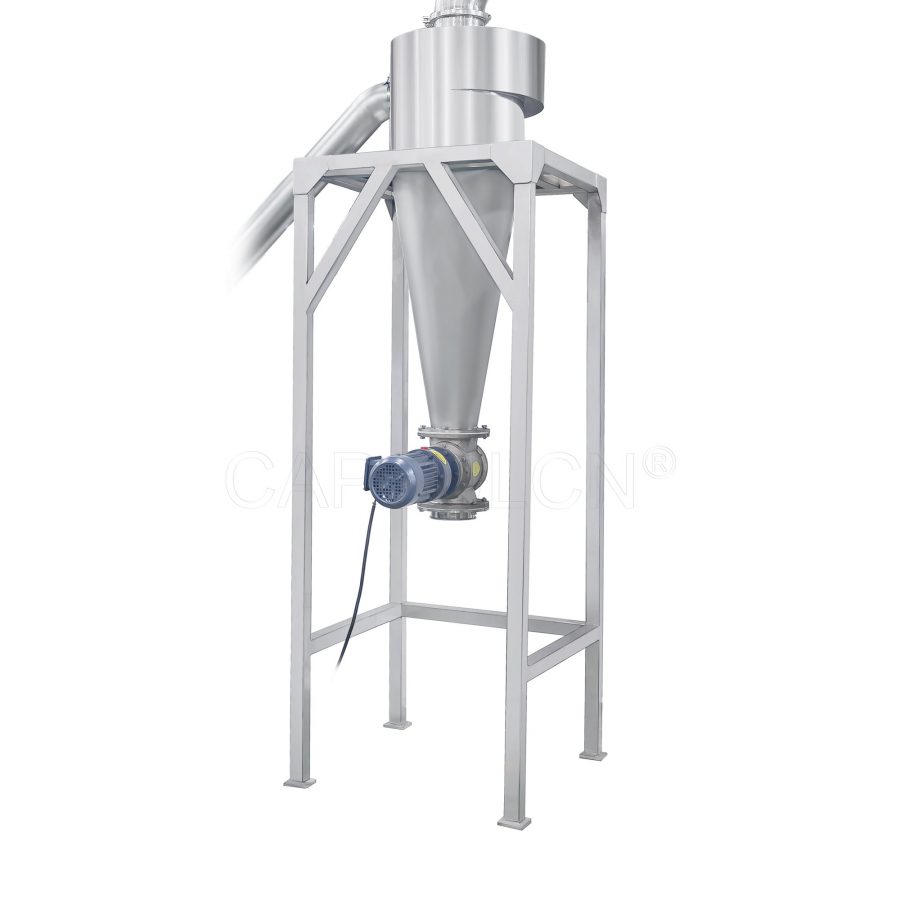

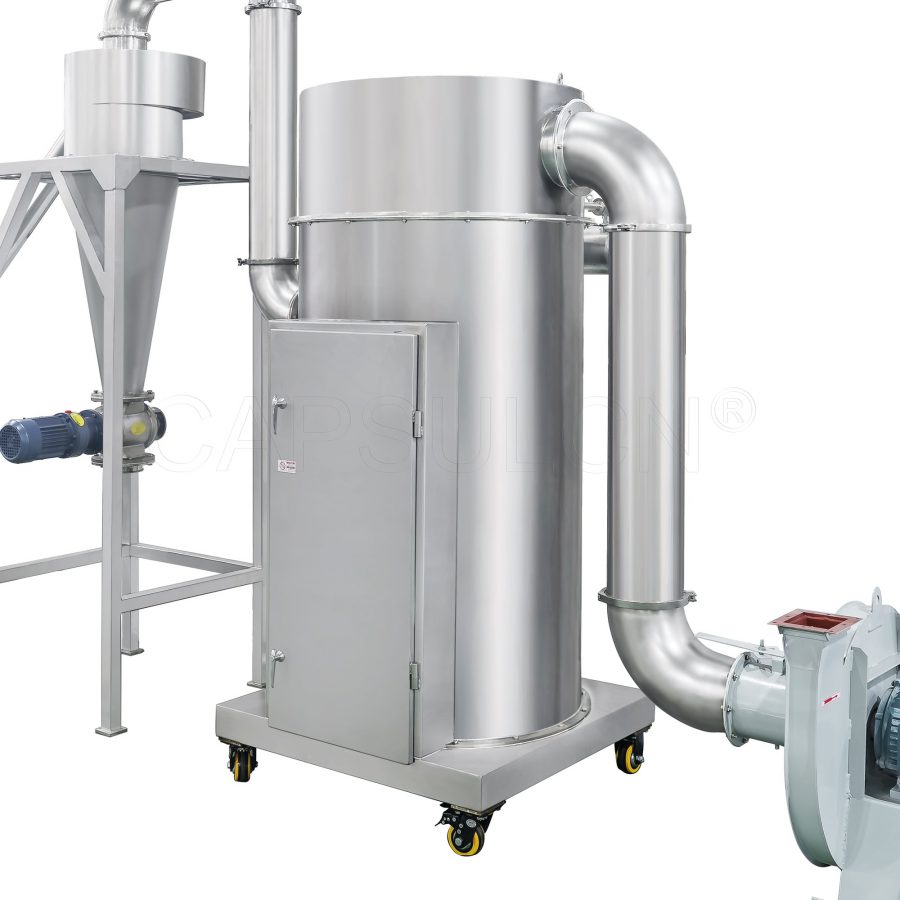

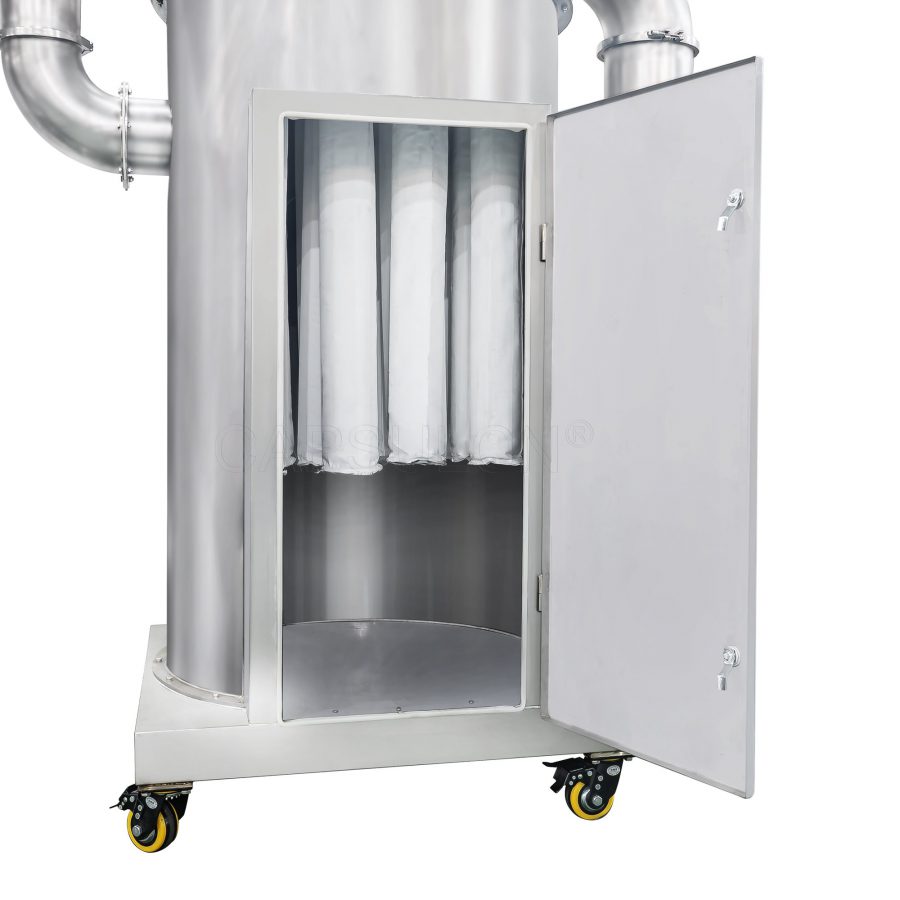

- This machine consists of three parts: main machine, cyclone separator and pulse dust collector. It has characteristics of air sorting, no sifter, no sieve mesh, even particle size, etc. The production process is continuous.
- It can crush all kinds of heat sensitive materials without heating up the machine.
- Its overall performance has reached the international advanced level. It is widely used in pharmaceutical, chemical, food and other industries.
Description | Parameters |
Fan motor | 4 kW |
Feeding motor | 0.55 kW |
Material discharging motor | 0.75 kW |
Fineness of finished product | 80~320 |
Production capacity | 40~200 kg/h |
Overall dimension | 4,000*1,200*2,700 mm |
